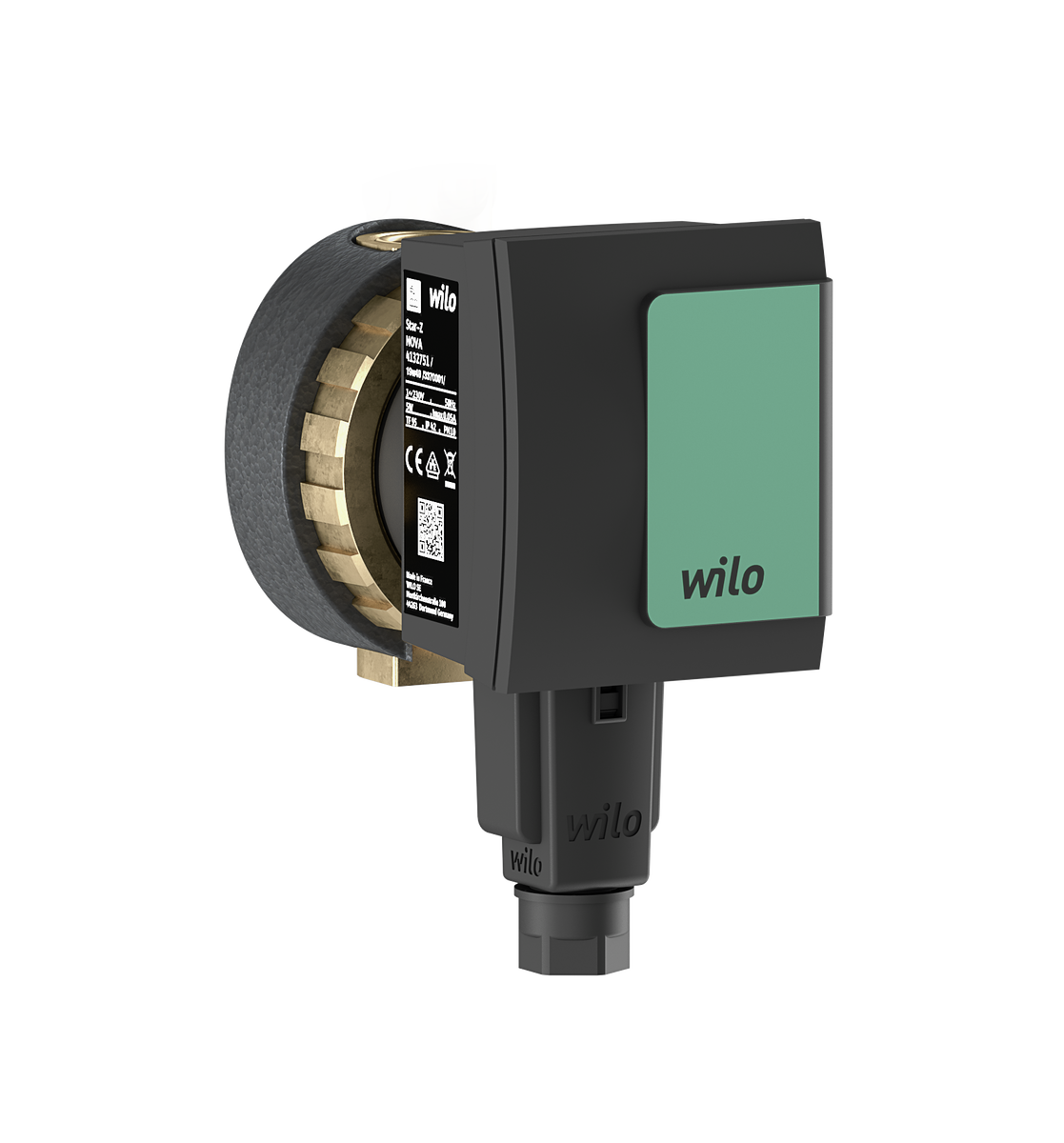

WILO Wilo Wet Runner High-Efficiency Pump Star-Z NOVA, G1-PN10, 1x230V, 5W – 4132750

This circulation pump is only suitable for drinking water. Drinking water circulation pump Wilo-Star-Z NOVA (wet rotor version) for single-family homes. Pump for pipe installation, block current-proof synchronous motor with high starting torque. Brass pump housing, Noryl impeller, ceramic shaft. Power consumption from 3 - 5 W. Standard with thermal insulation shell, housing thread Rp ½. Operating data Conveying medium: Water Max. medium temperature: 95 °C Min. medium temperature: 2 °C Min. ambient temperature: 2 °C Max. ambient temperature: 40 °C Temperature range at max. ambient temperature +40 °C: +2...+65 Maximum operating pressure: 10 bar Max. permissible total water hardness: 3.57 mmol/l (20 °dH) Motor data Emission: EN 61000-6-3 Immunity: EN 61000-6-2 Mains connection: 1~230 V, 50 Hz Power consumption: 5 W Speed max.: 3000 rpm Rated current: 0.05 A Degree of protection motor: IP42 Cable gland: 1 x PG11 Materials Pump housing: Brass, CW617N Impeller: PPE/PS-GF30 Shaft: Ceramic Bearing: Carbon, resin-impregnated Installation dimensions Suction-side pipe connection: Rp ½ Discharge-side pipe connection: Rp ½ Installation length: 84 mm Ordering information Brand: Wilo Net weight approx.: 0.8 kg Item number: 4132750
