VOGEL&NOOT Vonova Ventil Middle Connection 21VM 600/20 Bl 800mm white – F1H210600801000

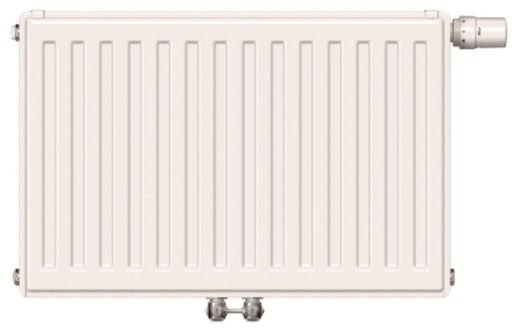

VN-T6 Mid-connection radiator Mid-connection radiator made of cold-rolled steel sheet according to EN 442-1, stable, elegantly profiled with 40 mm groove spacing, primer coating according to DIN 55900 Part 1, baked at 190 degrees C, finished with an electrostatic powder coating according to DIN 55900 Part 2, in RAL 9016, baked at 210 degrees C object temperature, equipped with a fixed, built-in T-shaped valve set, suitable for two-pipe and one-pipe systems using a one-pipe distributor, the kv-value of the factory-mounted built-in valve is preset and matched to the heat output, with demand-oriented adjustments possible in the range of 0.13 to 0.72. Adjustment of the radiator share in one-pipe systems from 30% to 50%. Equipped with a construction site protection cap for the built-in valve, rear-welded hanging lugs, a removable top cover and two closed side panels on all types, sealed drain, rotatable special vent and blanking plugs, the cover system complies with the former BAGUV guidelines, complete pre-installation possible using the mounting template 3/4' A.G., flushing and leak testing of the system using a flushing bend (accessory), alternatively also connectable as a compact radiator on one side or alternately, uniform wall distance for all multi-layer radiators (with special angled bracket also for single-layer radiators). Disassembly and assembly of the top cover using decorative clips, performance tested according to DIN EN 442 or ÖNORM EN 442 and permanently monitored during manufacturing according to EN-ISO 9001, triple-packed (cardboard, edge protection, shrink film). Suitable for manual and thermostatic operation, variable connection options for copper, steel, plastic and multi-layer metal pipes, connections: 4 x G 1/2 I.G. and 2 x G 3/4 A.G. bottom center. Thermostatic valve (factory-sealed top right) can be easily exchanged to the left at any time, even retrospectively, without turning the radiator and without crossing supply and return lines.
