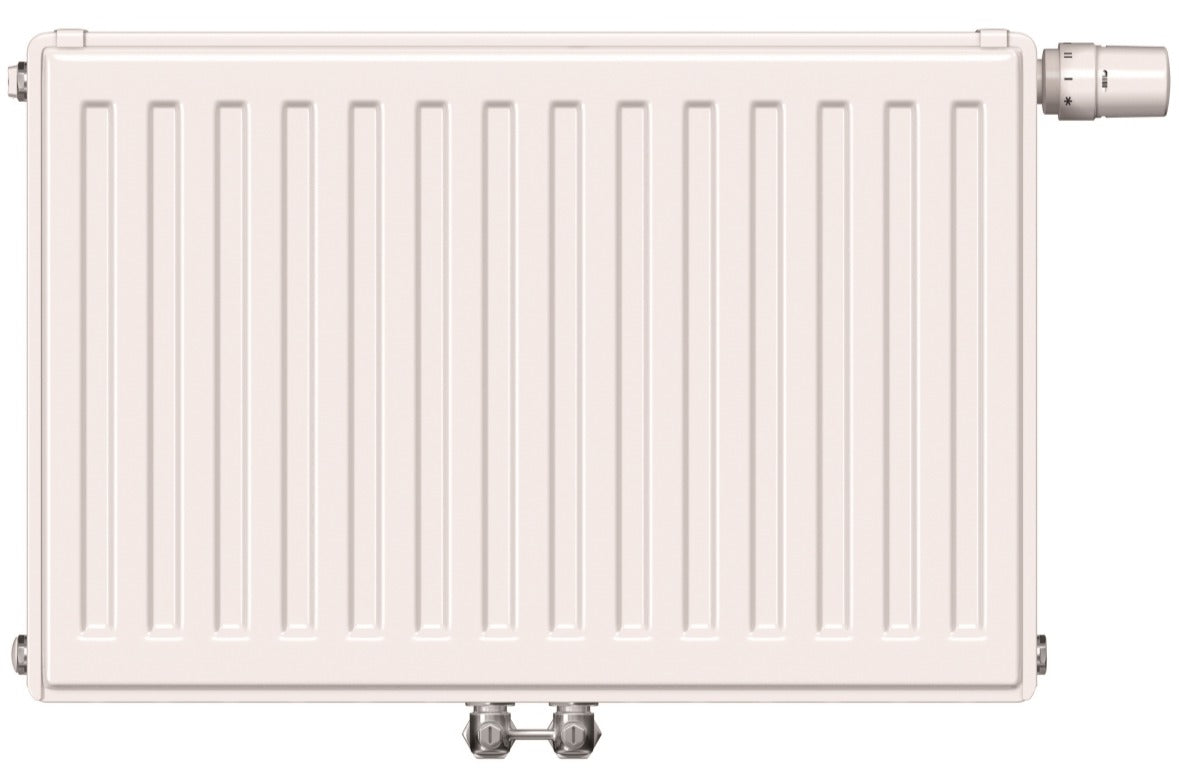

VOGEL&NOOT Vonova Ventil Center Connection 21VM 600/15 Bl 600mm white - F1H210600601000

VN-T6 middle-connection radiator Middle-connection radiator made of cold-rolled steel sheet according to EN 442-1, stable, elegantly shaped profiling with 40 mm bead spacing, primer coating according to DIN 55900 Part 1, stoved at 190 degrees C, finished with an electrostatic powder coating according to DIN 55900 Part 2, in RAL 9016, stoving at 210 degrees C object temp., equipped with a fixed T-shaped valve set, suitable for two-pipe and one-pipe systems using a one-pipe distributor, kv value of the factory-fitted built-in valve is preset and matched to the heat output, whereby demand-oriented adjustments in the range of 0.13 to 0.72 are possible. Adjustment of the radiator share in one-pipe systems from 30% to 50%. Equipped with a construction site protective cap for the built-in valve, rear-welded suspension lugs, a removable top cover and two closed side panels on all types, sealed drain, rotatable special vent and blank plugs, the cover system complies with the former BAGUV guidelines, complete pre-installation possibility thanks to the 3/4' A.G. mounting template, flushing and leak testing of the system using a flushing bend (accessory), alternatively also connectable as a compact radiator on one side or alternately, uniform wall distance for all multi-layer radiators (with special angled bracket also for single-layer radiators). Disassembly and assembly of the top cover using decorative clips, performance tested according to DIN EN 442 or ÖNORM EN 442 and permanently monitored according to EN-ISO 9001, triple packed (cardboard, edge protection, shrink film). Suitable for manual and thermostatic operation, variable connection option for copper, steel, plastic and multi-layer pipes, connections: 4 x G 1/2 I.G. and 2 x G 3/4 A.G. bottom center. Thermostatic valve (factory sealed top right) can be easily swapped to the left at any time, even retrospectively, without turning the radiator and without crossing flow and return.
