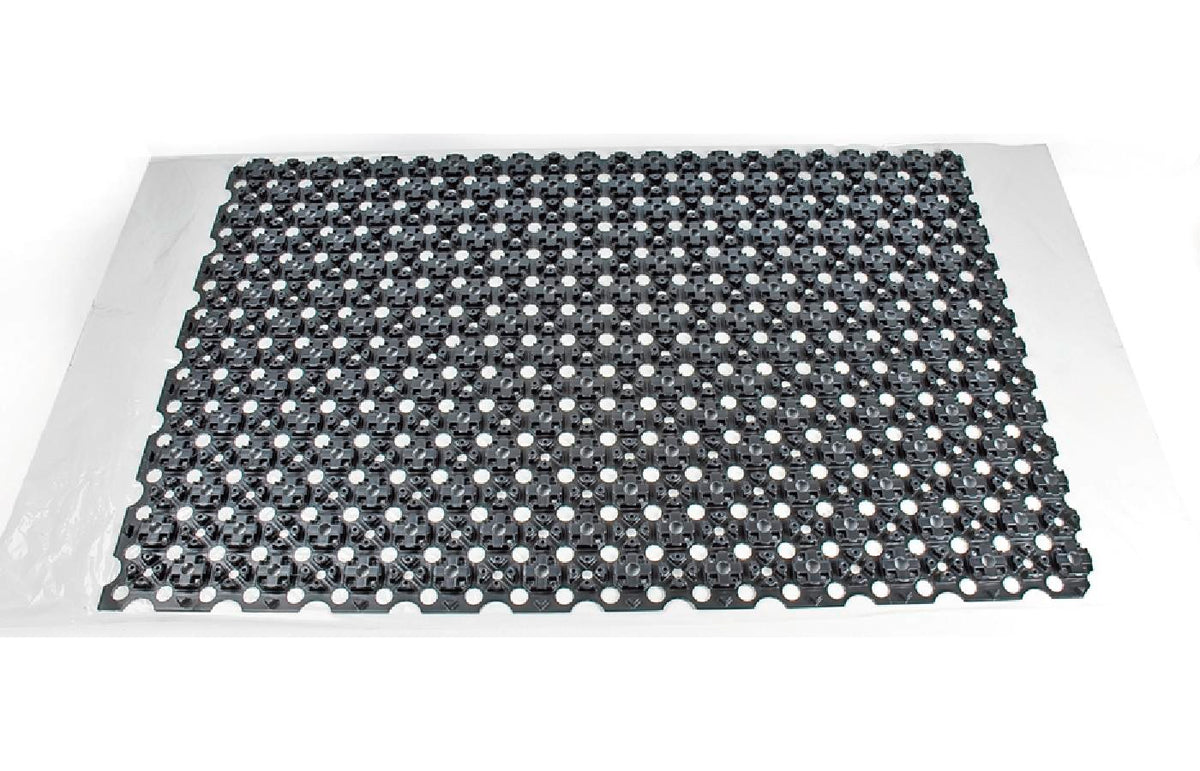

UPONOR Uponor Minitec Foil Element 15.4 m2, self-adhesive, per m2 – 1005261

Specification:
- For fastening on solid floors or specified insulation materials
- As a stable pipe fastening system with minimal construction height
- As a studded panel for straight and diagonal pipe laying with Minitec PE-Xa pipes 9.9 x 1.1 mm
- DIN EN 13501-1 fire classification: Class E.
- Normally flammable, building material class B2, according to DIN 4102.
- Pipe spacing: Vz 5, 10, 15
- Area with overlapping studs: 0.77m²

Application:
- Underfloor heating and cooling
- For use with qualified filling materials

Certificates:
- DIN CERTCO

- Pipe support made of polystyrene
- With overlapping on both sides, with triangular studs
- In perforated design for installation between leveling compound and subfloor
- With self-adhesive backing for secure hold on screed and tile floors
