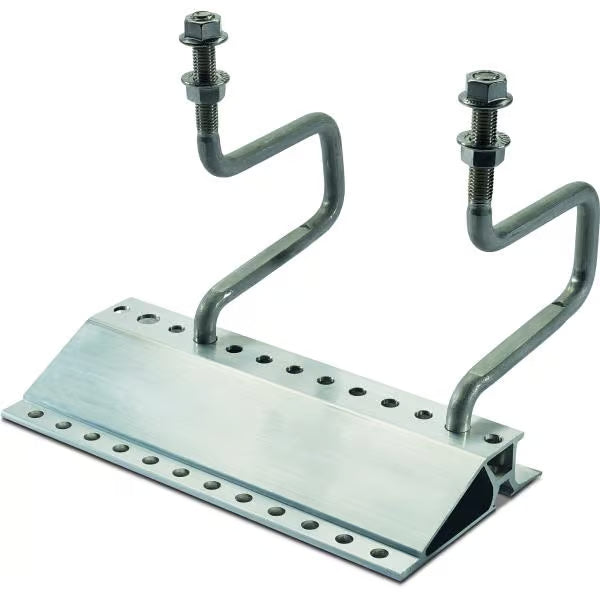

Novotegra Double Roof Hook Set ZD 30 M12 - 03000255
€ 21,55 exkl. USt.
Novotegra Double Roof Hook Set ZD 30 M12 - 03000255 is backordered and will ship as soon as it is back in stock.
Advantages at a glance
Two roof hooks for high loads
Set with 2x M12 201/131 roof hooks and serrated lock nut for mounting C-rails under high loads.
Base profile 30 included
Includes 1x base profile 30 with L=245 mm as a stable base for the double hook construction.
Triple adjustable
Height compensation at the rail/roof hook connection up to 35 mm and roof hook/base profile 24-30 mm for exact alignment.
Large tile overlap
Tile overlap of approx. 80 mm, up to approx. 95 mm depending on the tile type, for rainproof installation.
For high snow and wind loads
The double hook design is specifically suitable for heavily loaded roof areas in alpine regions.
Dimensions a/b/c
Compact design with a: 245 mm, b: 125 mm and adjustable c: 43-49 mm for common tiled roofs.
Included in the set
| Parameter | Value |
|---|---|
| Set type | Double roof hook set ZD 30 M12 |
| Roof hook | 2x roof hooks M12 201/131 with serrated lock nut |
| Base profile | 1x base profile 30, L=245 mm |
| Application | Mounting of C-rails under high loads |
| Dimension a | 245 mm |
| Dimension b | 125 mm |
| Dimension c | 43-49 mm |
| Adjustability | Triple adjustable |
| Tile overlap | approx. 80 mm, up to approx. 95 mm depending on tile type |
| Height adjustment rail/roof hook | up to 35 mm |
| Height adjustment roof hook/base profile | 24-30 mm |
| Manufacturer part number | 03000255 |
Frequently asked questions
What is the Novotegra Double Roof Hook Set ZD 30 M12?
It is a complete mounting set consisting of two M12 201/131 roof hooks with serrated lock nut and one base profile 30 (L=245 mm). It is used for fastening C-rails on tiled roofs under high loads.
Which systems is the double roof hook set suitable for?
The double hook design is designed for roof areas with high snow and wind loads. The two hooks per base profile distribute forces over a larger area into the roof structure.
How is the height of the roof hook compensated?
The set is triple adjustable: The rail/roof hook connection can be adjusted up to 35 mm and the roof hook/base profile connection by 24-30 mm in height. This allows you to compensate for unevenness in the tiles precisely.
What is the tile overlap?
The tile overlap is approx. 80 mm and extends up to approx. 95 mm depending on the tile type. This keeps the hook's penetration protected under the overlying tile.
Who is Novotegra?
Novotegra is a manufacturer of photovoltaic mounting systems for pitched and flat roofs. The systems are designed for easy installation and high static reserves and are used in many European PV projects.
Where can I buy roof hooks for PV mounting in Austria?
Novotegra roof hooks and mounting accessories are available at sularvic.com sularvic.com. As a PV and electrical wholesaler, we supply installers and system operators throughout Austria.
How can I order?
Directly online via sularvic.com -- if you have any questions about the design, the SOLARVIC team will be happy to help.
