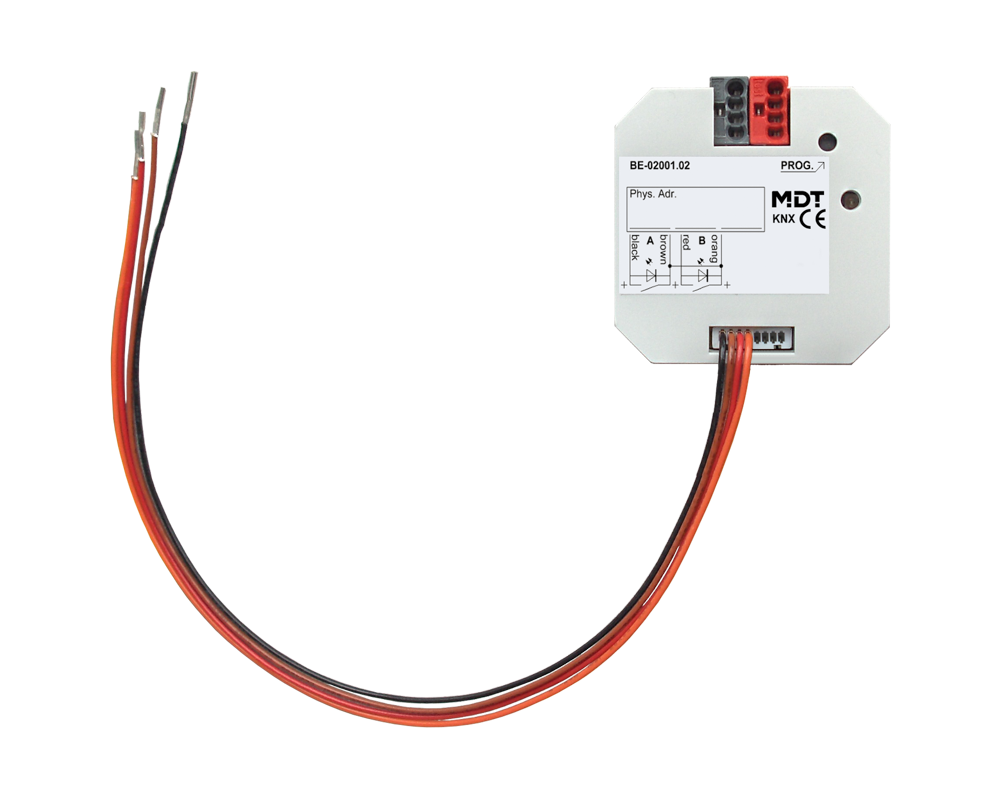

MDT KNX Push-button interface 2-fold for potential-free contacts UP – BE-02001.02

KNX push button interface / button interface 2-gang, flush-mounted, potential-free version. Version for connecting potential-free contacts or LEDs. For flush-mounted installation in switch boxes, cable length max. 10 m. For connecting push buttons, switches, window contacts. Each channel can be set as an output for 1.5 mA low-current LEDs. Multiple-tap function sends up to 4 values to the same or different objects. Innovative group control with long/extra-long button press. 4 integrated logic modules, e.g., for evaluating inputs (window closed or send second object). Normally open and normally closed operation, length of button press adjustable. Dimmer and blind function for one- and two-button operation. Send values, forced operation and switching commands adjustable. Integrated bus coupler. 3-year product warranty. Short/long button press with 2 objects. Integrated pulse and switch counters, cyclic sending adjustable. For flush-mounted installation in switch boxes (connecting cable length 22 cm). Dimensions (H x W x D): 41 x 41 x 12 mm.
