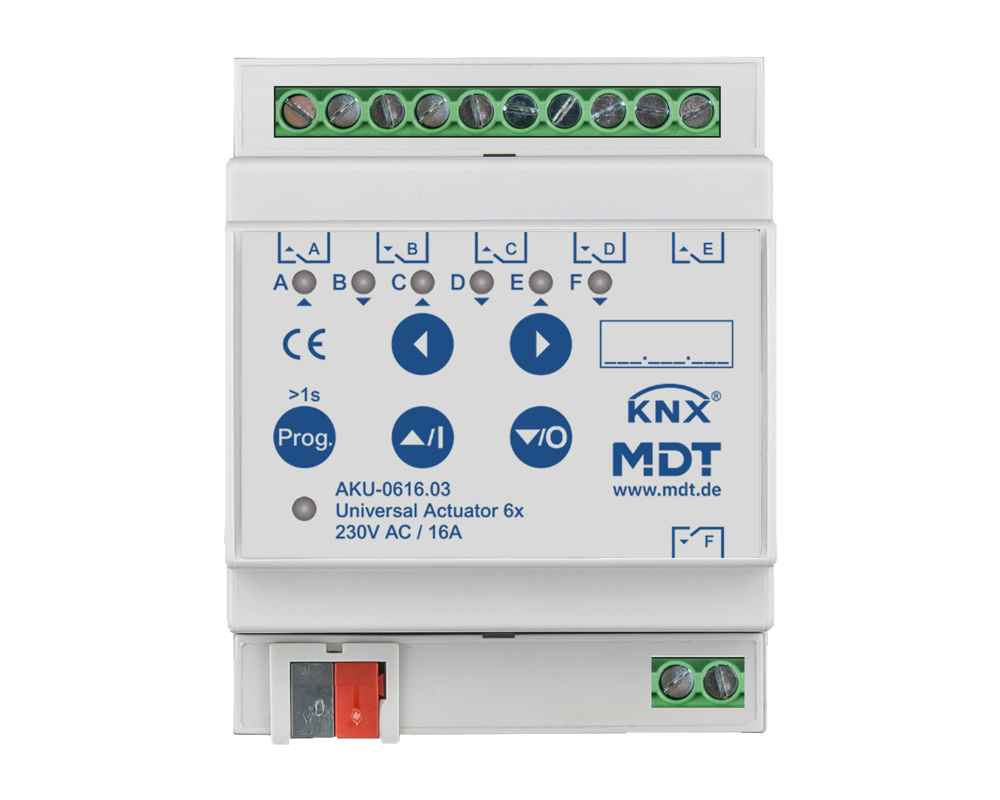

MDT KNX Switching/Blind Actuator 6/3-gang 16 A REG – AKU-0616.03

KNX universal actuator 6-gang, 4TE REG, 16 A, 230 V AC, 100 µF, 15 ECGs. Compact design with bistable relays. Max. current 16 A for resistive load, 100 µF / 15 ECGs. With sun position calculation. Can be used as a switching actuator (max. 6-gang) or blind actuator (max. 3-gang). Any combination of switching and blind actuators. Heating control with PWM 0-100 %. Button for manual operation and LED display per channel. Practical ventilation function (window open/tilted). Automatic shading/slat tracking with sun position calculation. Time functions (on/off delay, staircase lighting function). Status feedback for all channels (active/passive). Logic gates, 8 scenes per channel. Central functions and blocking objects for forced control. Operating mode for blinds/roller shutters. Running, pause and step times freely adjustable. 1-bit automatic control and sun protection function. 8-bit positioning for height and slat. Adjustable behavior in case of bus voltage failure/recovery. 4 mm² connection terminals. All L connections separate. 3-year product warranty.
