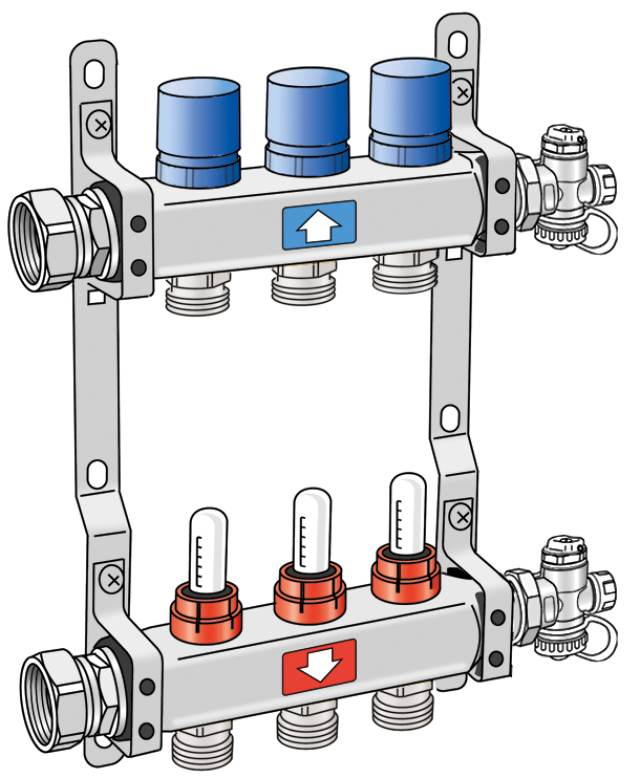

KE KELIT KMU590E ULTRAX FB-Manifold 9 L: 575mm Application Range: 70°C-6bar – 7909600

Stainless steel supply and return manifolds with 3/4" Eurocone external thread heating circuit outlets, with vent and drain at the end of the manifold, connections with screwed-in 1" flat-sealing union nut. Return valve tops suitable for KM596 KELOX thermic motor, flow meters adjustable from 0.5-5.0 l/min, incl. sound-insulated steel brackets. Application range: tmax. 70°C/6 bar. ATTENTION: WITHOUT KM220 Euro connection!
