KE KELIT  Art.Nr: 15472780214603

KE KELIT KMP590D PROTEC Reg.Plug Distrib. 3 L:275mm Operating range:70 Grad C-6bar – 73172030

Regular price
Regular price € 384,94 inkl. USt.
€ 320,78 exkl. USt.
Verfügbarkeit wird geladen …
WhatsApp Sofortberatung Jetzt online Persönliche Beratung direkt vom Fachmann – Antwort meist in wenigen Minuten.

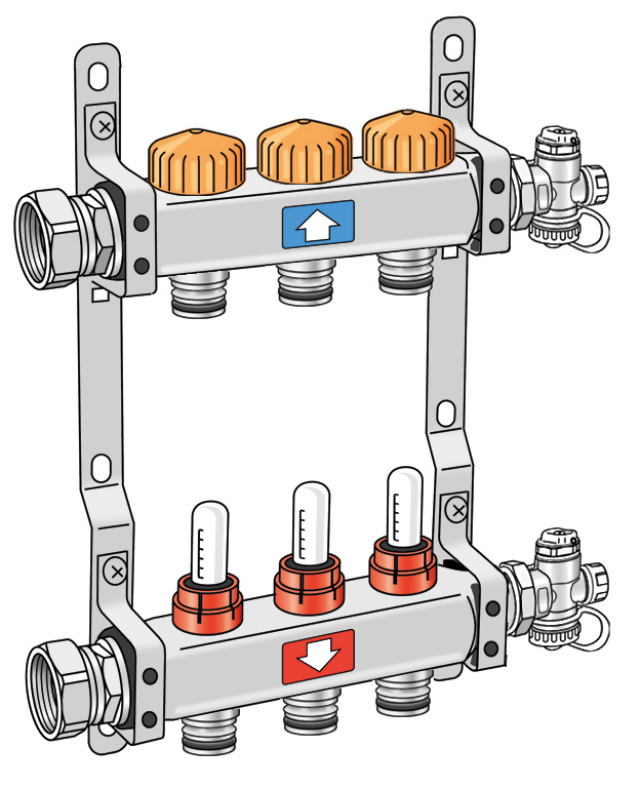

Stainless steel supply and return manifolds with plug-in heating circuit outlets, with venting and draining at the end of the manifold, connections with screwed 1" union nut, flat-sealing. Automatic flow control and hydraulic balancing of the individual return valves suitable for KM596 KELOX thermic motor, supply flow meter adjustable from 0.5-5.0 l/min, including sound-insulated steel brackets. Area of application: tmax. 70°C/6 bar. ATTENTION: WITHOUT KMP552 PROTEC quick coupling!

Installation anfragen
Montage • Elektro • Inbetriebnahme
Wir bieten die Installation deiner Photovoltaikanlage durch unser Team sowie durch ausgewählte Partnerbetriebe an. Gemeinsam sorgen wir für eine fachgerechte Montage, Elektroinstallation und zuverlässige Inbetriebnahme.
Installation anfragen
Datenblatt
Hinweis: Der Link kann je nach Hersteller direkt einen Download starten.
Öffnen / Download

Technische Parameter

Produkteigenschaften ETIM

Ursprungsland
IT
Zolltarifnummer
84818099
eClass
22410105
eClass Bezeichnung
Lüftungsgerät ohne Wärmerückgewinnung
Serien
KELOX Flächenheizung
ETIM-Klasse
Regelung für Flächenheizung
Anschlussart Primärseite
2-rohrig
Werkstoff
rostfreier Stahl
Position primärer Anschluss
links/rechts
Nenndurchmesser primär
1 Zoll (25)
Mit Thermometer
Nein
Mit Entlüftung
Ja
Mit Füll-/Entleerungshahn
Ja
Anzahl der Gruppen sekundär
3
Mit Wandbefestigungsbügel
Ja
Breite
225 mm
Höhe
335 mm
Tiefe
70 mm
