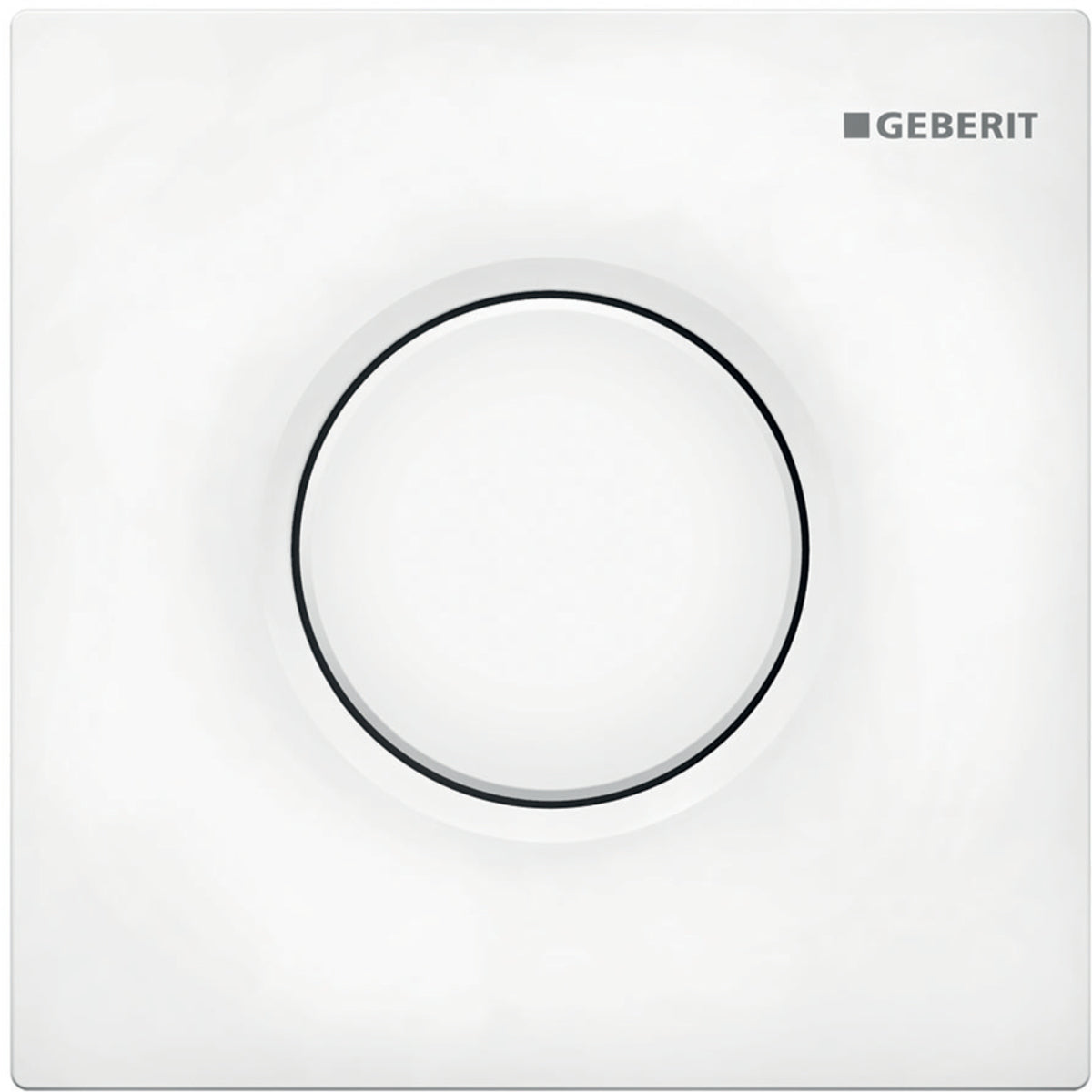

GEBERIT GE Urinal Control Type 01 Manual Flush, Pneumatic, Round, White, Plastic – 116.011.11.5

Geberit urinal control with pneumatic flush actuation, Type 01 actuator plate, roundApplication purposesFor automatic flush actuation of urinalsFor Geberit installation elements for urinals with front actuationFor Geberit installation elements for urinals with top actuationFor installation in roughing-in sets for Geberit urinal controls (from year of manufacture 2009)CharacteristicsActuator plate with locking boltFlush time adjustment with air nozzles (pneumatic)Low actuation forceLow stroke movementFlush actuation upon releasing the actuator buttonFlush volume can be reduced to 0.5 l per flush via the throttle screw of the roughing-in setFixture group II according to DIN 4109Colour / SurfaceColour: whiteTechnical characteristicsFlow pressure (bar) - min. to max.: 1–8 barTest pressure water (bar) - max.: 16 barTest pressure air / inert gas (bar) - max.: 3 barWater temperature (°C) - max.: 30 °CActuation force (N) - max.: 12 NFlow rate at 1 bar without flow limiter (l/s): 0.3 l/sFlow rate at 1 bar with flow limiter (l/s): 0.18 l/sMinimum flow pressure for calculation flow rate (bar): 1 barRelative humidity (%) - min. to max.: max. 100 %Calculation flow rate (l/s): 0.22 l/sFlush time adjustment range (s): 4 / 8 / 12 sButton shape: roundPlasticAdditional scope of deliveryType 01 actuator plate, roundPneumatic flush actuation, pre-mounted on mounting framePneumatic valveMounting material
