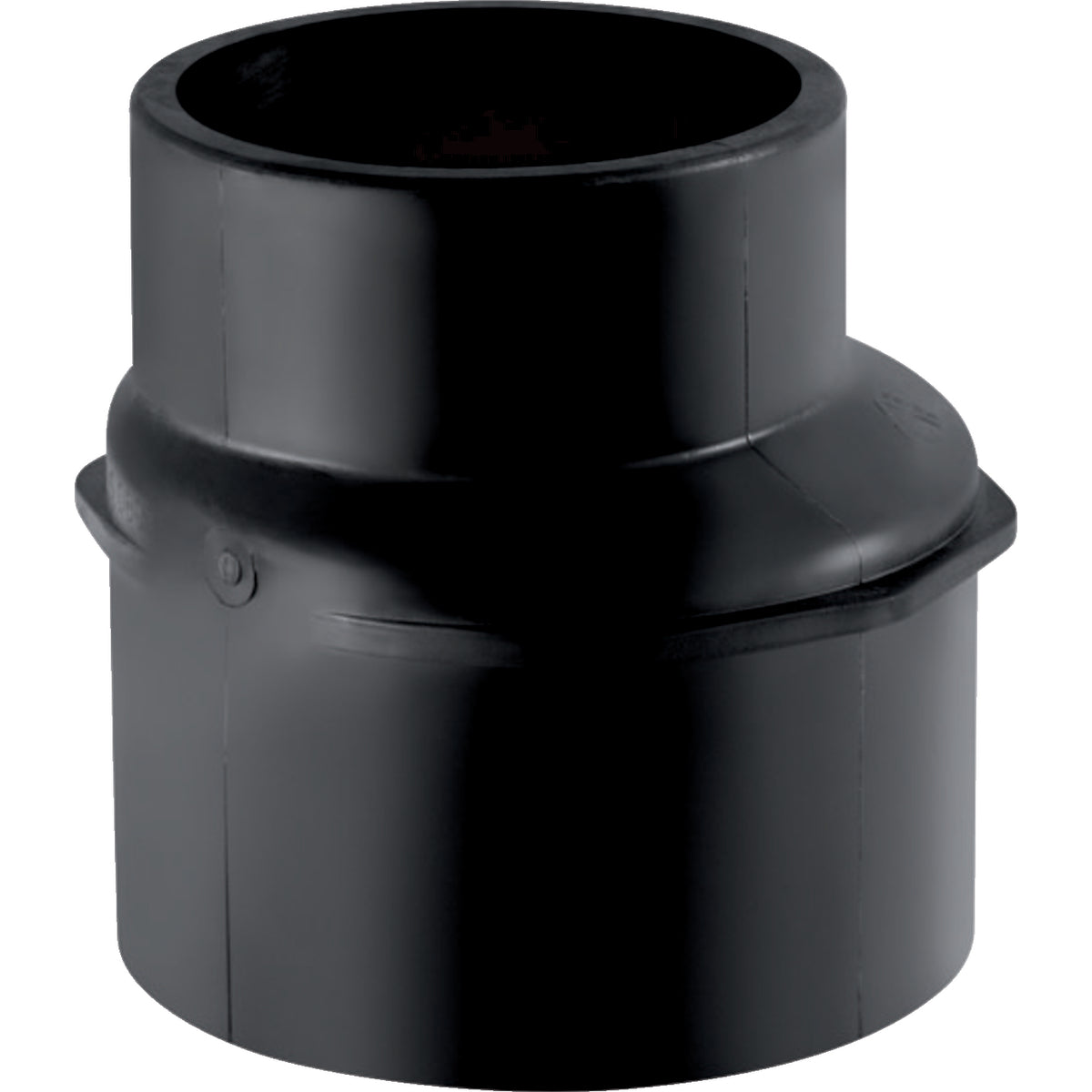

GEBERIT GE Silent-db20 eccentric reduction d135/125mm – 312.125.14.1

Geberit Silent-db20 eccentric reducerFields of applicationFor building drainageFor buildings with increased sound insulation requirementsCharacteristicsEccentricWith stop for socketHighly sound insulatingTechnical dataStorage temperature (°C) - min. to max.: max. 40 °CMaterial: PE-S2Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)Shape: ReducerThermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)d, ø / Outer diameter (mm): 135 mmd1, ø / Outer diameter (mm): 125 mmA / Projection (cm): 0.4 cmH / Height (cm): 11 cmh / Partial dimension height (cm): 6 cmh1 / Partial dimension height (cm): 3.7 cm
