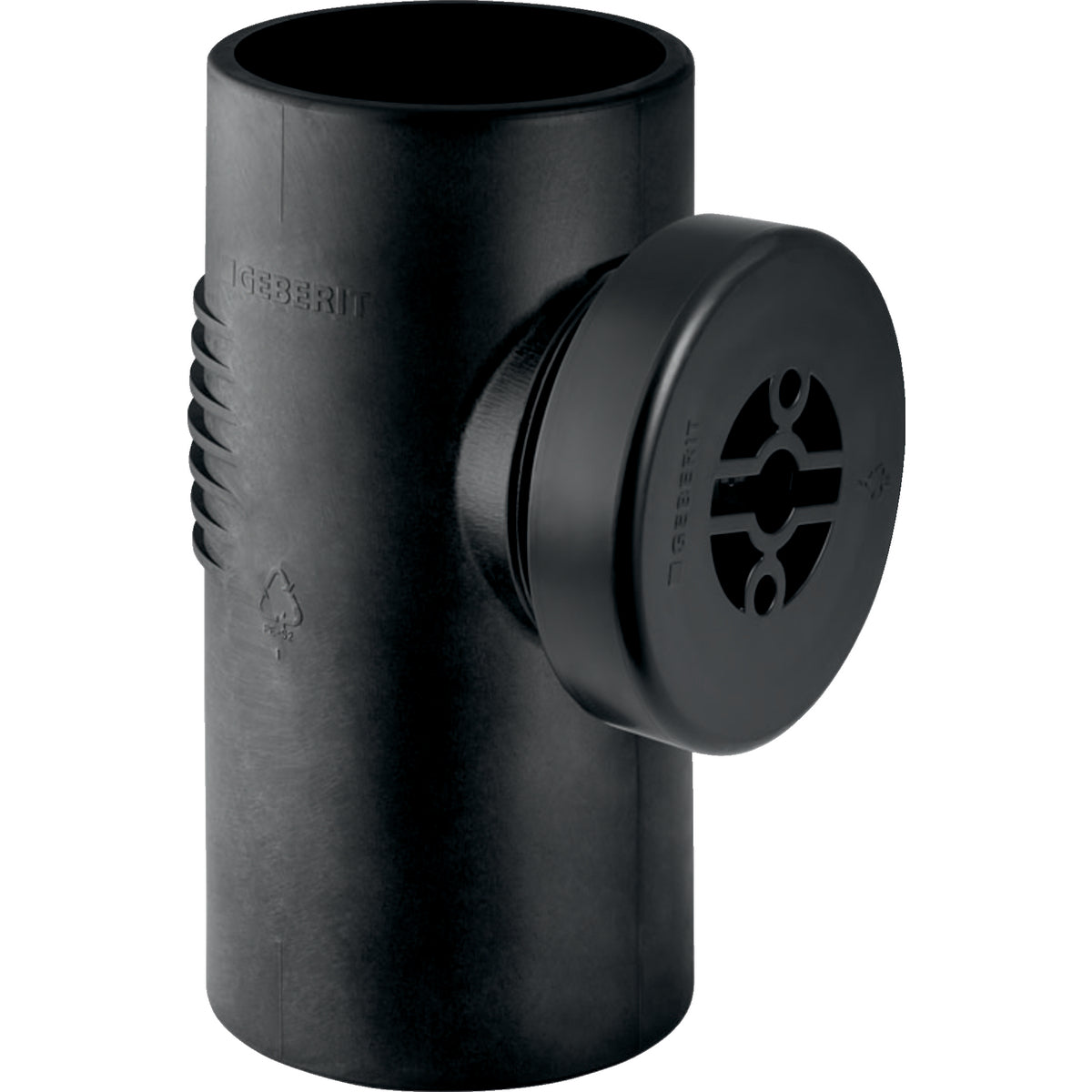

GEBERIT GE Silent-db20 Cleanout 45 Deg. d 75 mm 307450 – 307.333.14.1

Geberit Silent-db20 Cleaning Pipe 90° with Round Access PointApplicationsFor building drainageFor buildings with increased sound insulation requirementsCharacteristicsWith EPDM sealHighly sound-insulatingTechnical dataStorage temperature (°C) - min. to max.: max. 40 °CMaterial: PE-S2Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)Shape: otherThermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)d, ø / Outside diameter (mm): 75 mmd1, ø / Outside diameter (mm): 75 mmarc / Angle (°): 90 °D / Outside diameter (cm): 11.5 cmL / Length (cm): 10 cmH / Height (cm): 17.5 cmX1 / Leg length / L-dimension (cm): 10.5 cmX3 / Leg length / L-dimension (cm): 7 cmK1 / Shortening (cm) - max.: 3.5 cmAdditional scope of deliverySealing cover made of PP
