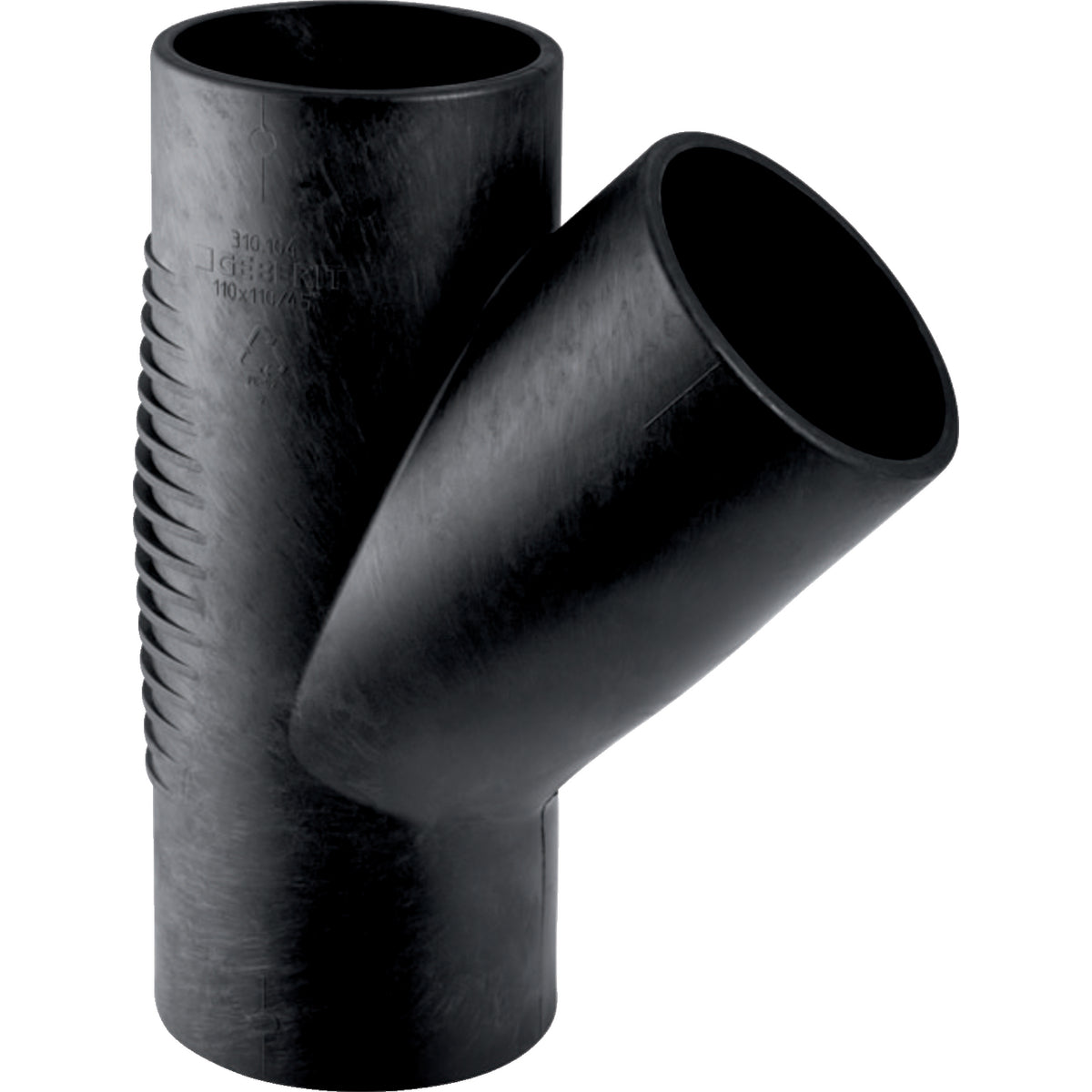

GEBERIT GE Silent-db20 Branch 45 Deg. d110/110mm – 310.104.14.1

Geberit Silent-db20 branch 45°Areas of applicationFor building drainageFor buildings with increased sound insulation requirementsCharacteristicsHigh sound insulationTechnical dataStorage temperature (°C) - min. to max.: max. 40 °CMaterial: PE-S2Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)Shape: BranchThermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)d, ø / Outer diameter (mm): 110 mmd1, ø / Outer diameter (mm): 110 mmarc / Angle (°): 45 °H / Height (cm): 27 cmX1 / Leg length / L-dimension (cm): 9 cmX2 / Leg length / L-dimension (cm): 18 cmX3 / Leg length / L-dimension (cm): 18 cmK1 / Shortening (cm) - max.: 3 cm
