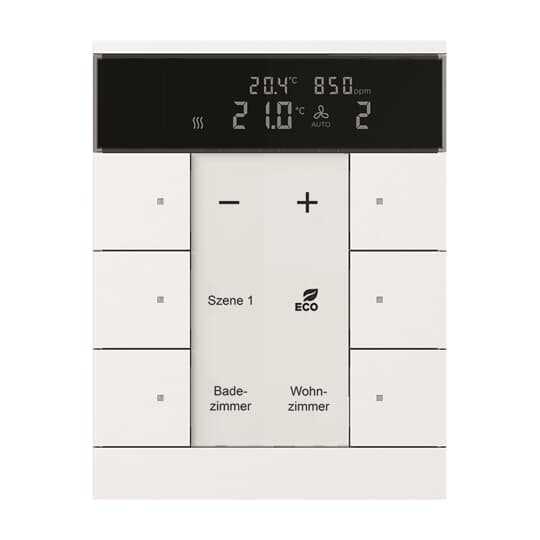

BUSCH-JAEGER HVAC/CO2 device 6-gang BE SBC/U6.0.11-84 – 2CKA006330A0009

Control element with room temperature controller function and CO2/humidity sensor.
With integrated KNX bus coupler.
With labelling field.
Support of KNX functions through innovative color concept (yellow=lighting, blue=blinds, orange=RTC, magenta=scene and white=neutral/no function assignment) or standard red/green lighting.
Push-button function: Switching / Dimming / Blinds / Send value / Light scenes, etc.
For controlling heating, ventilation and fan coil actuators.
Master/slave operation.
With base load operation.
The fan speed can be switched manually or to automatic mode.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
Number of bus participants: 2.
Design line: Busch-Tenton®
Product range: KNX
