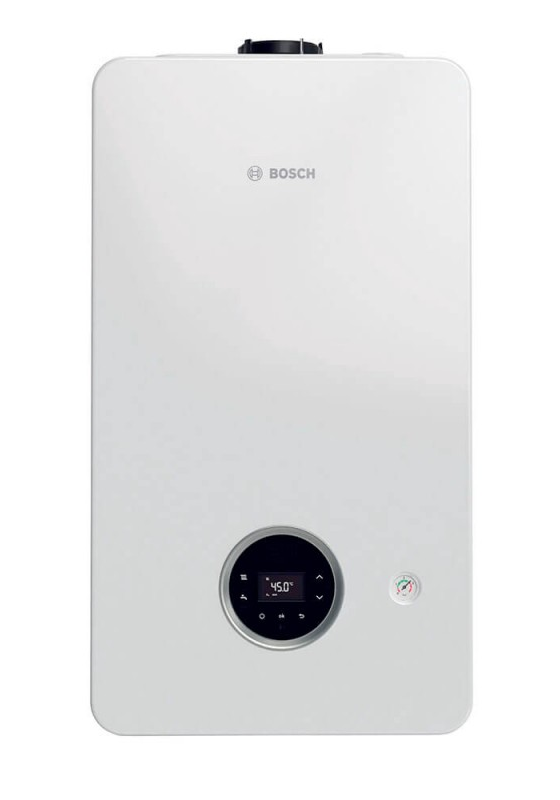

BOSCH ROBERT BOSCH Gas condensing boiler GC2300iW 24/30C wall-mounted, combi – 7-736-901-844

Type: GC2300IW 24/30 C 23 Seasonal space heating energy efficiency class: A Energy efficiency class spectrum: A+++ -> D Seasonal space heating energy efficiency: 94 % Rated heat output at 80/60 °C: 24 kW Sound power level indoors: 44 dB (A) Water heating energy efficiency class: A Energy efficiency class spectrum: A+ -> F Water heating energy efficiency in average climate: 85 % Load profile: XL min. Rated heat output (50/30°C): 3.4 kW max. Rated heat output (50/30°C): 25 kW min. Rated heat output (80/60°C): 3 kW max. Rated heat output (80/60°C): 24 kW max. Rated heat load heating: 24.5 kW max. Rated heat output (hot water): 29.4 kW max. Flow temperature: 82 °C max. Outlet temperature: 60 °C Heating flow and return: 3/4 inch Gas connection: 3/4 inch Electrical connection: 230 V Electrical frequency: 50 Hz Expansion vessel capacity: 6 l Protection class (EN 60529): IPX4D (B23/B33:IPX0) Product ID no.: CE-0085CS0332 Height: 724 mm Width: 400 mm Depth: 300 mm Net weight: 36 kg Manufacturer: Bosch Thermotechnik GmbH Order no.: 7736901844 Packaging dimensions: 890x480x410 mm Total weight incl. packaging: 38 kg
