KABEL-LEITUNGEN
Art.Nr: 15433001992523

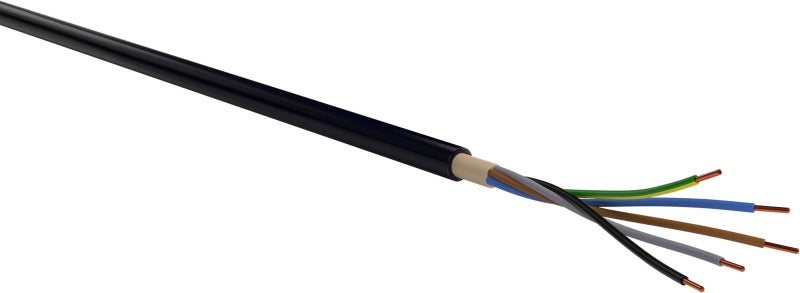

PVC-insulated power cables 0.6/1kV single and multi-core E-YY 5X6 RE SW cut length
Regular price
Regular price
€ 7,08
inkl. USt.
€ 5,90 exkl. USt.
€ 5,90 exkl. USt.
Unit price€ 7.080,00
/1000m
Verfügbarkeit wird geladen …
PVC-insulated power cables 0.6/1kV single and multi-core E-YY 5X6 RE SW cut length is backordered and will ship as soon as it is back in stock.
PVC/PVC underground cable, single-wire, power distribution cable in power plants, industrial and switchgear installations, and in local networks. For fixed installation in the ground, indoors, in cable ducts, outdoors, in water – in accordance with the applicable installation regulations – if there is no risk of mechanical damage.
KABEL-LEITUNGEN
Art.Nr: 15433001992523
Regular price
Regular price
€ 7,08
inkl. USt.
€ 5,90 exkl. USt.
€ 5,90 exkl. USt.
Unit price€ 7.080,00
/1000m
PVC-insulated power cables 0.6/1kV single and multi-core E-YY 5X6 RE SW cut length is backordered and will ship as soon as it is back in stock.
Installation anfragen
Montage • Elektro • Inbetriebnahme
Wir bieten die Installation deiner Photovoltaikanlage durch unser Team sowie durch ausgewählte Partnerbetriebe an. Gemeinsam sorgen wir für eine fachgerechte Montage, Elektroinstallation und zuverlässige Inbetriebnahme.
Installation anfragen
Datenblatt
Hinweis: Der Link kann je nach Hersteller direkt einen Download starten.
Technische Parameter
Technische Parameter
| Conductor material | Copper | Nominal conductor cross-section | 6 mm² |
| Conductor class | Class 1 = solid | Conductor shape | Round |
| Number of cores | 5 | Core insulation material | Polyvinyl chloride (PVC) |
| Core identification | Color | With protective conductor | Yes |
| Lead sheath | No | Concentric conductor | None |
| Sheath material | Polyvinyl chloride (PVC) | Sheath color | Black |
| Approx. outer diameter | 17 mm | Permissible cable outer temperature during installation/handling | -5..70 °C |
| Permissible cable outer temperature after installation without vibration | -20..70 °C | Nominal voltage U0 | 0.6 kV |
| Nominal voltage U | 1 kV |
