Mounting kits from K2 Systems

(62 products)

K2 Systems is one of the leading manufacturers of PV mounting systems from Germany. Our complete sets are pre-assembled for 2 to 12 solar modules – with SingleRail rails, suitable roof connection, black anodized module clamps, potential equalization and all small parts. For pitched roofs, corrugated roofs, trapezoidal sheets and flat roofs.

Filter by number of modules

All 2 3 4 5 6 7 8 9 10 11 12

What's included

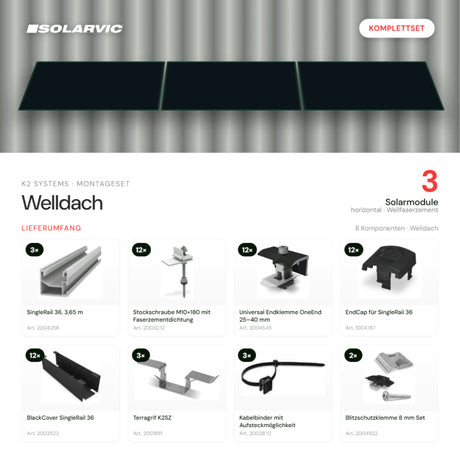

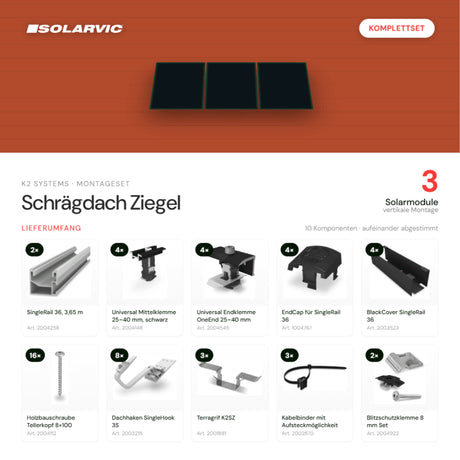

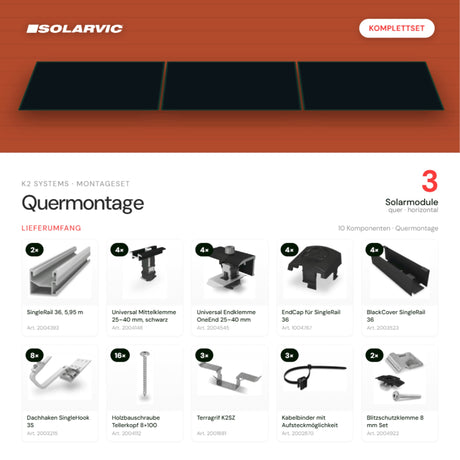

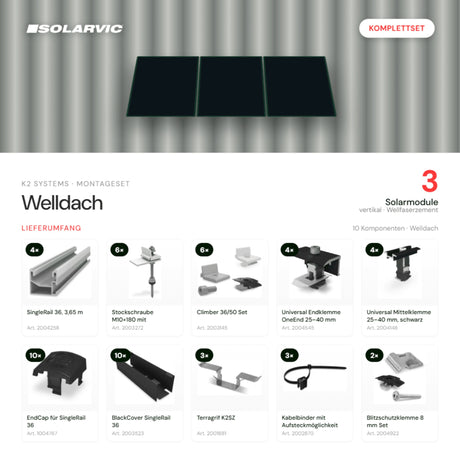

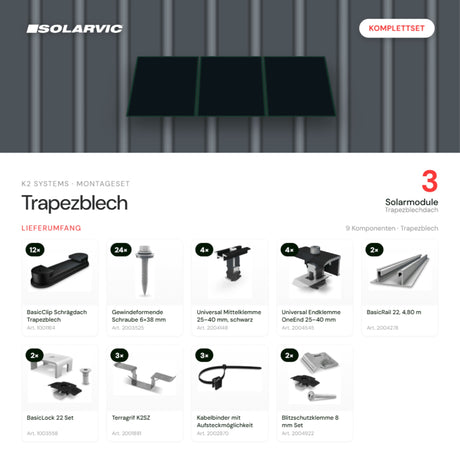

Each set includes SingleRail 36 rails, the appropriate roof connection (roof hooks, hanger bolts or Dome base), end and middle clamps, EndCaps, BlackCover, potential equalization (TerraGrif), lightning protection clamps and the necessary screws.

For which roofs

Sets for tiled roofs (pitched roof longitudinal, transverse and cross-composite), corrugated fiber cement, trapezoidal sheet metal and flat roofs with S-Dome (South) and D-Dome (East-West).

Frequently asked questions

Which modules are the sets designed for?

Standard framed modules with 30–42 mm frame height, designed for module width 1134 mm or length 1762 mm. Not for large format modules.

Does the roof need to be statically checked?

Yes. The sets are based on floor height 3 and wind load zone 2. Each roof must be checked individually; additional components are required in case of deviations.

What is different about the cross-composite?

In the cross-composite, two rail layers are mounted crosswise. This distributes the loads more evenly and improves rear ventilation.

How is delivery made?

Rails and large components by freight forwarding, small parts and clamps by parcel service.
