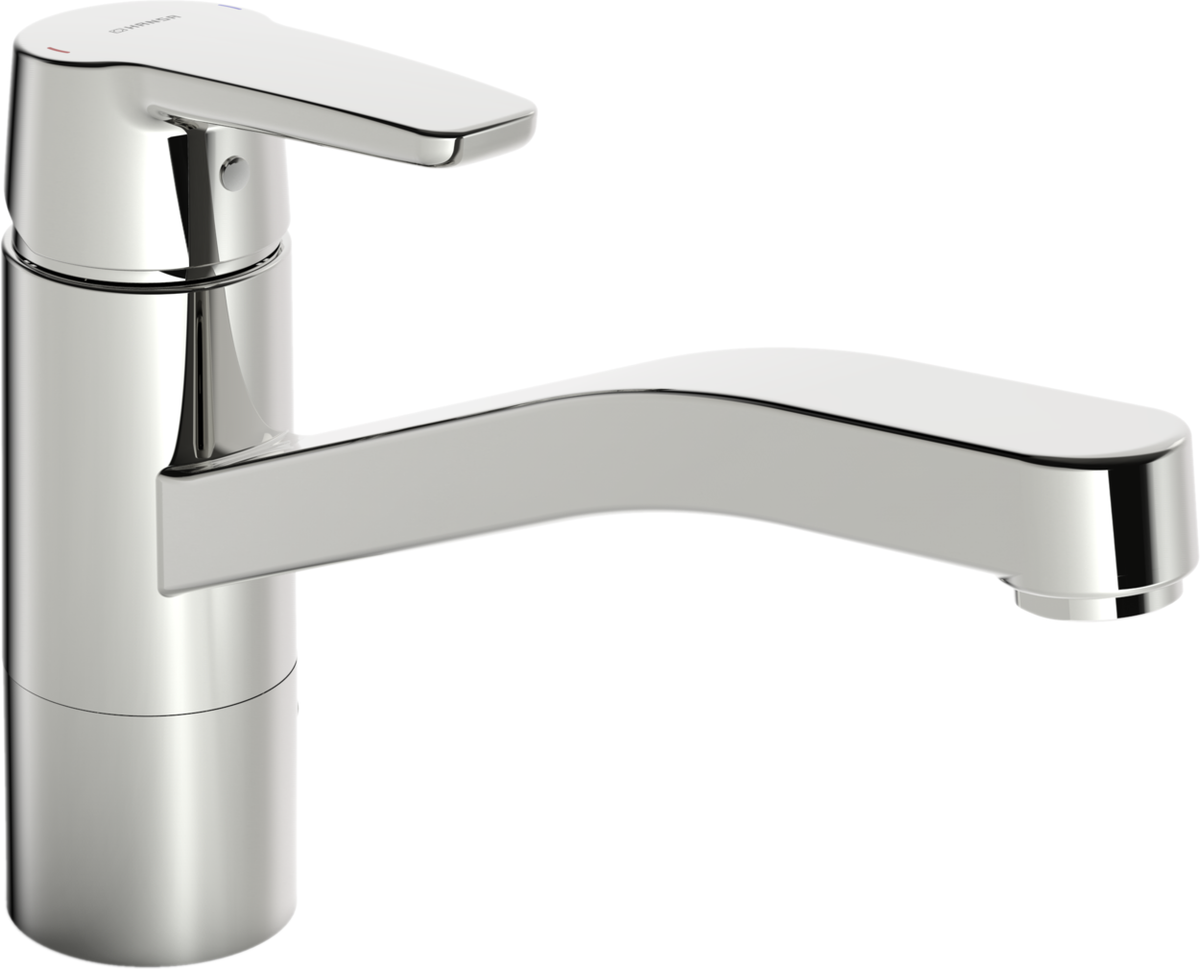

HANSA Hansa Polo New Kitchen Faucet Top-operated, swivelling, chrome – 5148 2293

GENERAL ATTRIBUTES: - Product Group: Kitchen faucet - Installation Type: Deck mounted - Technical Feature: Single lever mixer - Finish: Chrome - BIM data available: Yes PRODUCT PROPERTIES: - Aerator Type: CASCADE aerator - Connection: Connection via flexible supply hoses - Installation: 1-hole - Lever/Handle Type: Single operating lever/handle, Lever with hot/cold symbols - Spout Type: Swivel spout, Removable stop - Temperature Settings: Temperature limiter, Adjustable hot water stop (included in scope of delivery) - Mechanical Parts: 3.5 classic control cartridge with ceramic seals for water flow and temperature control - Special Features: Faucet body made of dezincification-resistant brass (DZR), Rapid mounting system FLOW PROPERTIES: - Flow at 300 kPa: 12.00 l/min REGULATIONS / STANDARDS: - EN Standard: EN 817 - Noise Class: I(ISO3822) APPROVALS: - DVGW: NW-6506BP0361 - KIWA: K6116/08 - ABP: P-IX 28870/IA - CSTB: 322-M1-20/1 - ACS: 16 ACC NY 205 TECHNICAL PROPERTIES: - DN Size: DN15 - Projection: 216 mm - Spout Swivel Range: 120 (80 / 40) - Material: brass - Hot Water Supply: max. +80C - Working Pressure: 50 - 1000 kPa - Connection Size: G3/8 - Backflow Preventer (EN1717): AA LOGISTICS: - Gross weight: 1.605 kg - Package Dimensions: 362.0 x 278.0 x 63.0
