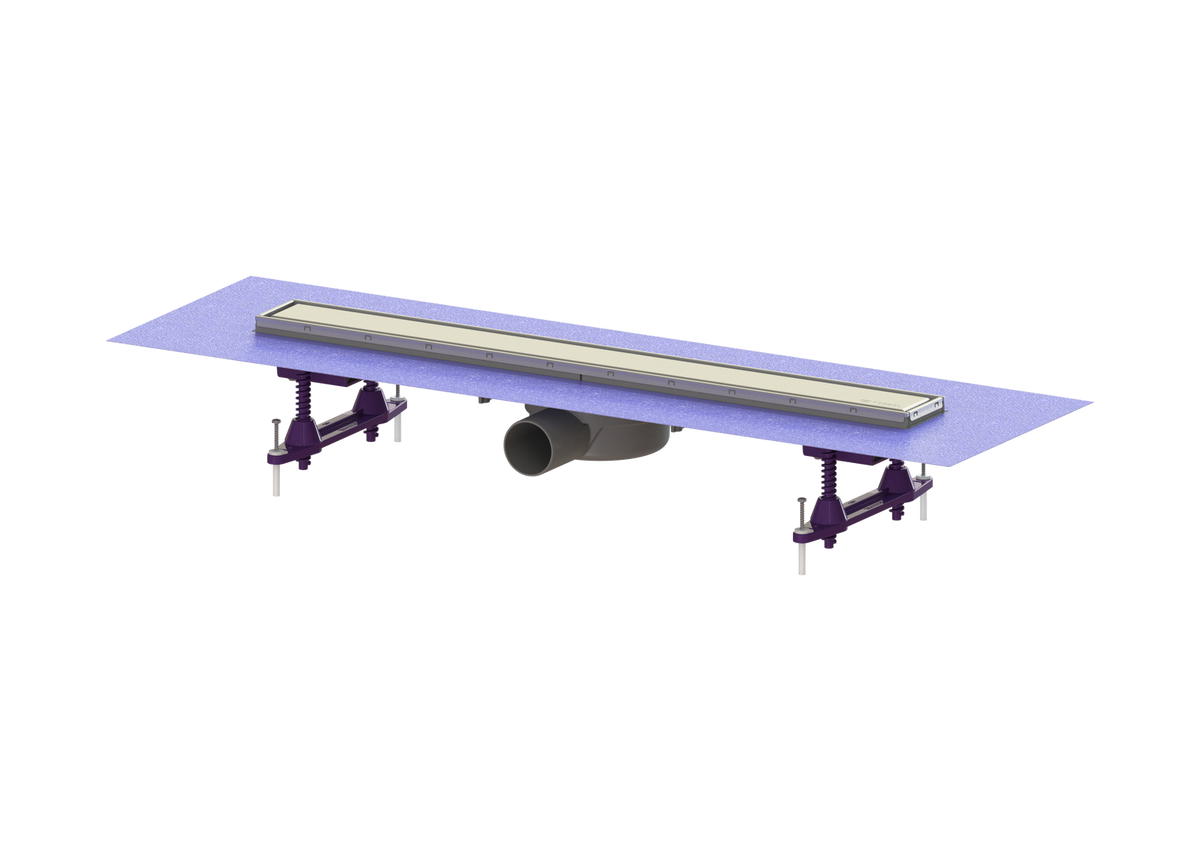

KESSEL KESSEL shower channel Linearis Compact L: 650 mm, DN 50, WaD, V2A cover, K 3 – 45600.62M

The Linearis Compact shower channel with a welded ABS base body is suitable for linear drainage indoors. When rotated and inserted, the stainless steel insert can be individually tiled. Includes pre-prepared seepage water openings and an odor trap.

Version
System: 125
Seepage water opening: prepared
Sealing on the top piece: factory-installed sealing membrane (WaD) according to DIN 18534
Water exposure class according to DIN 18534-1 (up to and including): W3-I
Water seal height: 22 mm
Drainage capacity (l/s) with 10 mm backwater: 0.6
Drainage capacity (l/s) with 20 mm backwater: 0.7
Drainage capacity (l/s) without backwater: 0.5 mm

General features
Nominal diameter (DN): 50
Outside diameter (DA): 50 mm
Odor trap: included

Dimensions
Net weight: 1.9 kg
Gross weight: 2.27 kg
External length: 715 mm
Installation depth: 80 - 140 mm
Width: 191 mm
Height: 80 mm
Packaging length: 1280 mm
Packaging width: 260 mm
Packaging height: 130 mm

Container/base body
Number of outlets: 1
Base body material: ABS

Cover features
Cover type: Stainless steel cover
Cover material: Stainless steel 1.4301 (V2A)
Cover color: silver
Frame material: Stainless steel 1.4301 (V2A)
Load class: K 3 (EN 1253-1)
Grating design: optionally tileable
Frame width: 66 mm
Frame length: 650 mm
Max. floor covering height: 15 mm
Top piece material: ABS
