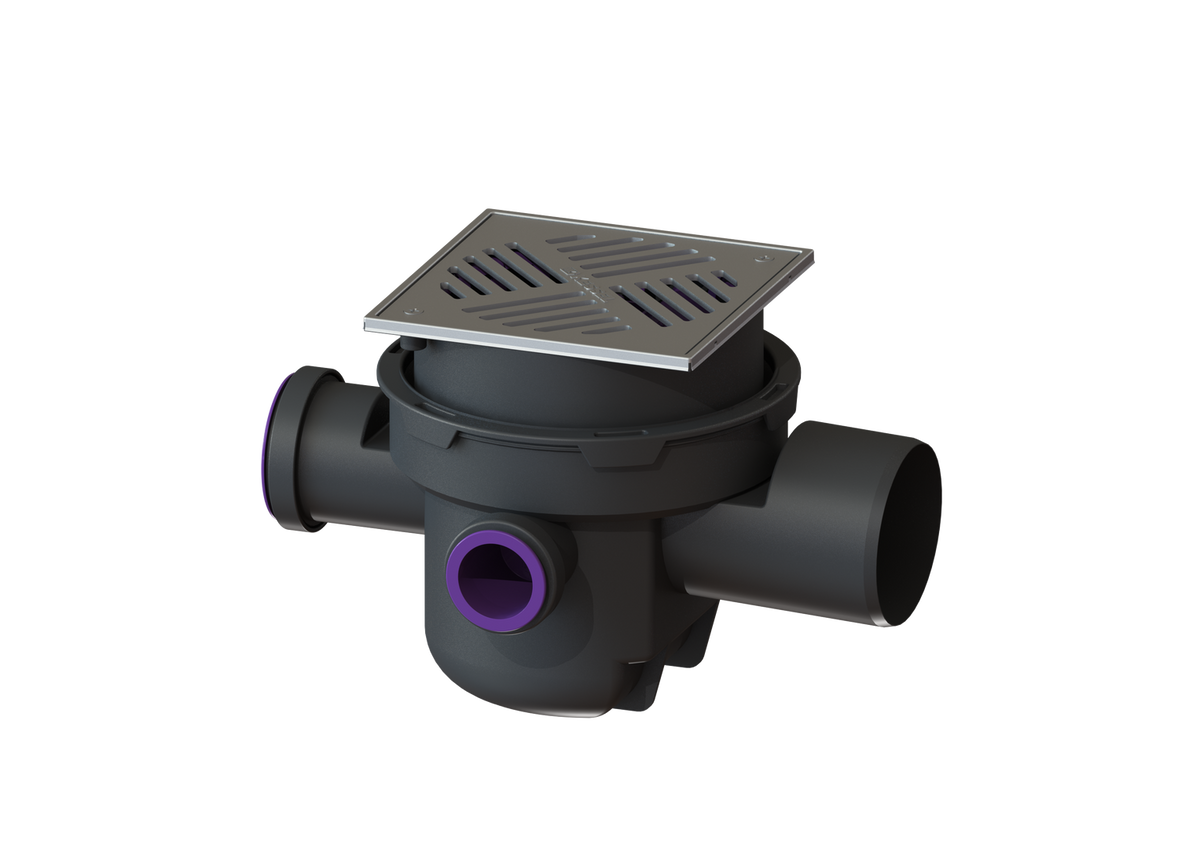

KESSEL KESSEL Basic Body The Universal DN 100, Stainless Steel Grate, Backwater Protection – 27621

The plastic drain is equipped with a removable backflow preventer with two backflow flaps, a manually lockable emergency closure, and a sludge bucket. The main body also has two DN 50 inlets and one DN 70 inlet with blanking plugs.

Version
Sludge bucket: yes
Emergency closure: yes
Waterproof flange: pre-assembled at the factory
Mechanical backflow flaps: 2

General features
Color: black
Standard: EN 1253, EN 13564
Nominal diameter (DN): 100
Outer diameter (DA): 110 mm
Wastewater type: faeces-free
Installation situation: installation in the floor slab
Delivery condition: ready for installation
Backflow protection: Type 5
Odour trap: included
Sustainable: through the use of recycled material

Dimensions
Net weight: 3.23 kg
Gross weight: 3.55 kg
Recess dimension width: 320 mm
Recess dimension length: 400 mm
Installation depth: 216 - 266 mm
Type of height adjustment: telescopic top section
Length: 380 mm
Width: 300 mm
Packaging dimension length: 380 mm
Packaging dimension width: 295 mm
Packaging dimension height: 257 mm

Container/main body
Nozzle design: horizontal

Cover features
Cover type: slotted grate
Cover material: stainless steel 1.4301 (V2A)
Cover color: silver
Load class: K 3 (EN 1253-1)
Grate size length: 187 mm
Grate size width: 187 mm
Grate size height: 4 mm
Sludge bucket: yes

Grate
Grate size length: 187 mm
Grate size width: 187 mm
Grate size height: 4 mm
