SIMPLEX Simplex Valve Assembly M No. 10192 1" with Union Nut - F10192

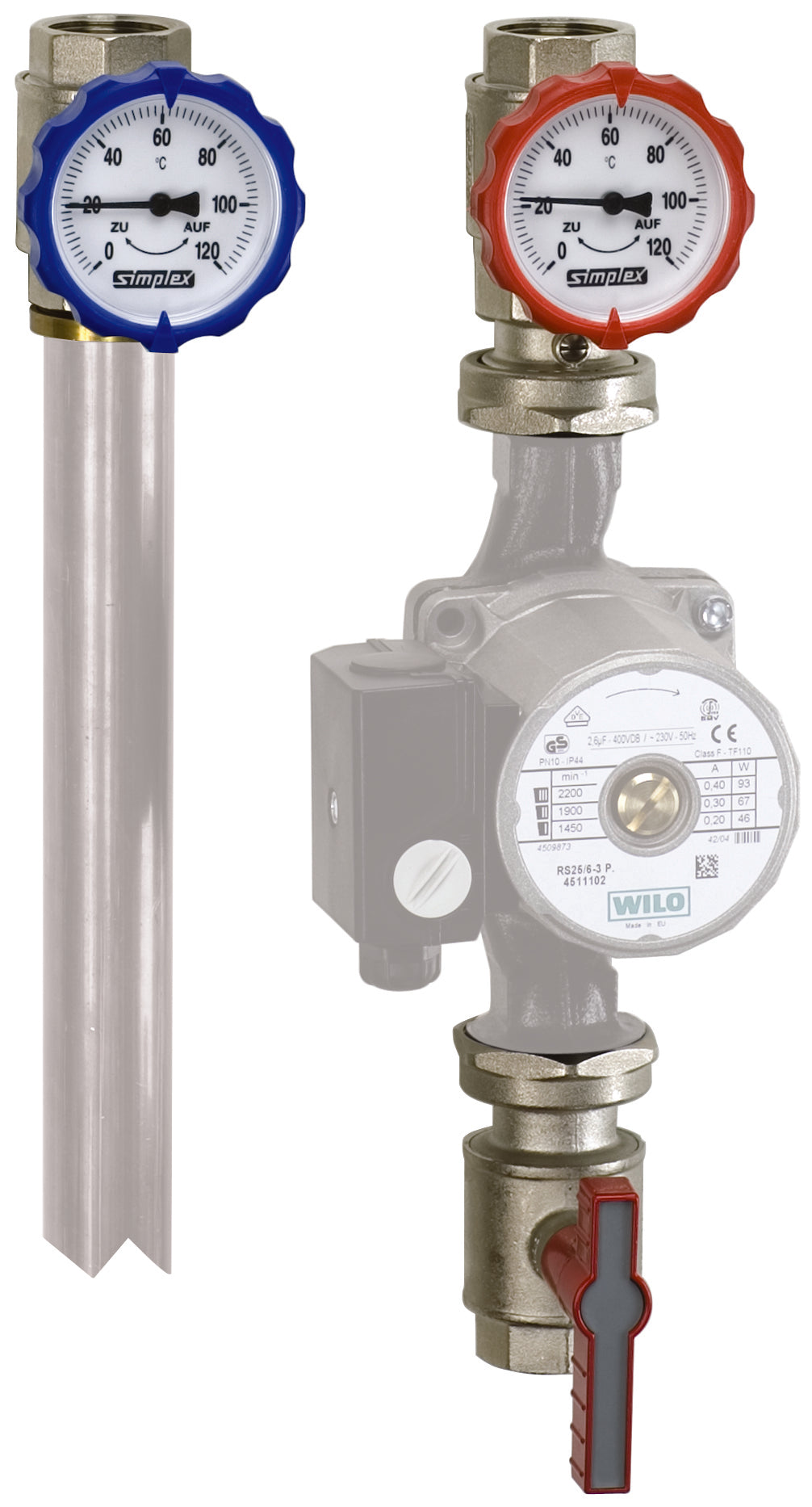

Pump valve unit consisting of 1 pc. pump ball valve with gravity brake and red thermometer handle, 1 pc. socket ball valve with blue thermometer handle and 1 pc. pump ball valve with red butterfly handle, selectable pipe spacing, without pump. Nickel-plated pressed brass ball shut-off valve with full bore. Hard-chrome-plated ball mounted in Teflon. Operating spindle with double O-ring seal. Extended metal handle for insulation, in accordance with heat protection regulations, with concealed stop. Application area: Hot water heating systems: max. pressure 10 bar, max. temperature: 110 degrees C continuous temperature, 130 degrees C short-term.
